AEC-82885T Expansion Card
Model: AEC-82885T
- SAS expander; PCIe x4 connector is an alternative power feed
- 36 SAS/SATA PHY ports: 28 internal and 8 external
Enquire about this expansion card with our China-based team for resale, replacement or integration.

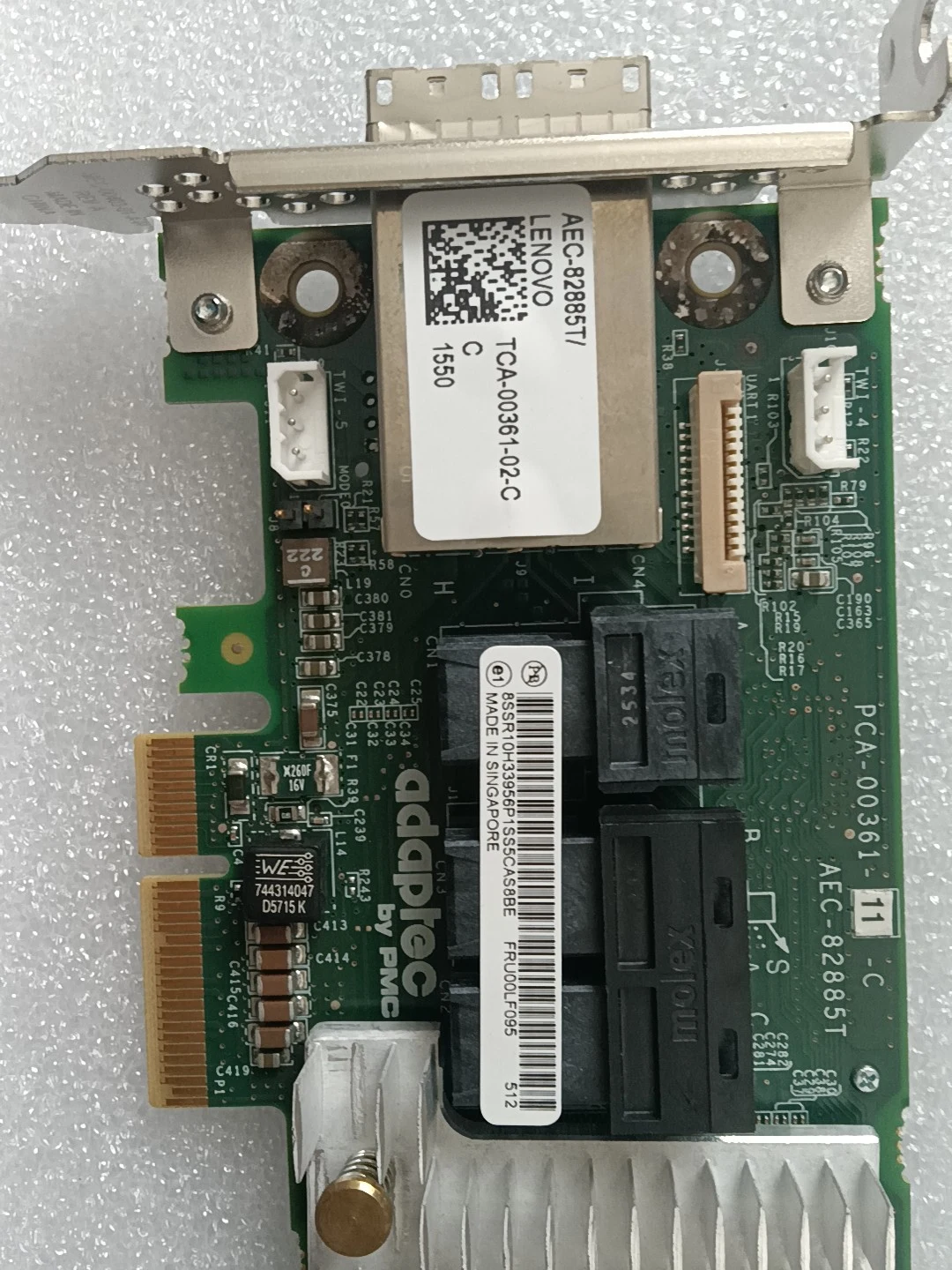

Ask about AEC-82885TReference photos of this model. Supplied units are agreed with your enquiry.
Model specifications
| Interface | SAS expanderPCIe x4 connector is an alternative power feed |
|---|---|
| Ports | 36 SAS/SATA PHY ports: 28 internal and 8 external |
| Data rate | SAS: 3 / 6 / 12 Gb/sSATA: 1.5 / 3 / 6 Gb/s |
| Connector | Seven internal SFF-8643 and two external SFF-8644 mini-SAS HD connectors |
| Form factor | Low-profile MD2 |
| Physical dimensions | 2.535 in H x 6.00 in L |
Manufacturer references
Match the product to your requirement
Matching the card to your application?
Share the target system, software and I/O requirements.
Need connectors or accessories?
Tell us the bracket, cable and connector versions you need.
We confirm the supplied units, condition and quotation with you.
From your enquiry to shipment
Model & quantity
Confirm the item and quantity.
Quotation & freight
Agree the supplied units and delivery costs.
Testing before dispatch
Every supplied item is tested before dispatch. Testing video provided before shipment.
T/T full payment before shipment. Delivery and after-sales terms are agreed for each order.
IT stock supply from China
Based in Xiamen, China, ITStockDirect supplies parts, barebones and configured systems from our own stock, including new and system-pulled hardware. We serve overseas resellers, local suppliers and integrators, with IT hardware experience since 2012.
About ITStockDirectBuying questions
Which I/O does AEC-82885T provide?
Ports: 36 SAS/SATA PHY ports: 28 internal and 8 external; Data rate: SAS: 3 / 6 / 12 Gb/s; SATA: 1.5 / 3 / 6 Gb/s; Connector: Seven internal SFF-8643 and two external SFF-8644 mini-SAS HD connectors.
What should I provide for application matching?
Share the system, software/application, I/O format and connector requirements so we can check the requested setup.
How do I request a quotation?
Contact ITStockDirect on WhatsApp about AEC-82885T. Share your quantity, destination, application and connector requirements. You can also send a label or parts list.
